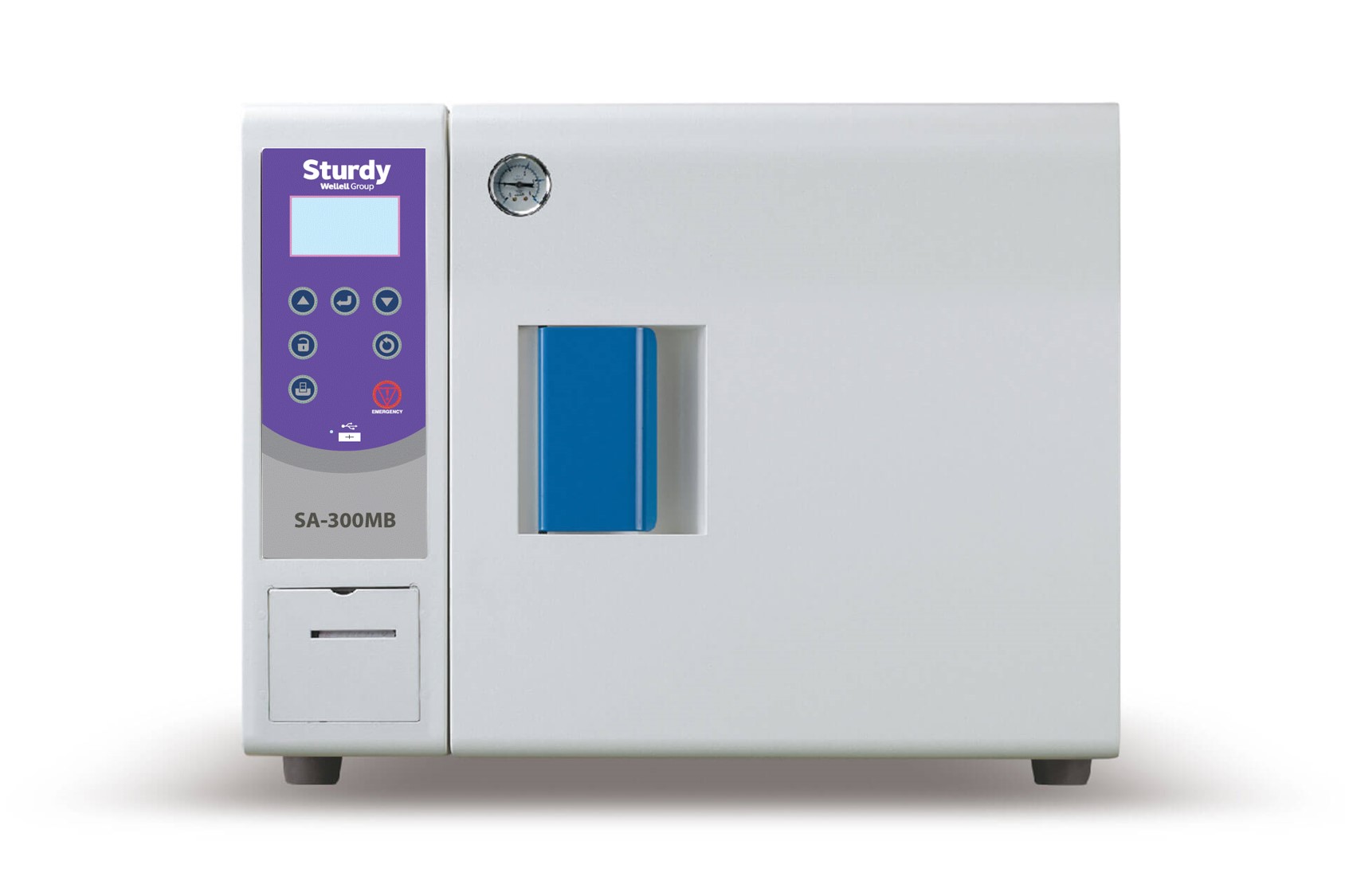

SA-300MB
First-class Performance with Compact Design
This series represents the entry-level model of microcomputer-controlled Class B autoclaves, with the versatility and flexibility to meet almost any situation that arises. This model uses an LCD panel and a few simple navigation buttons, allowing you to configure almost everything using the screen - this minimizes buttons on the panel and gives the range more flexibility and functionality.
High Efficiency Class B Autoclaves
- Pre vacuum + pulse air removal
- Post vacuum drying + 0.3μm HEPA filter
- Double door lock system
- Overheating protection
- Pressure overload protection
- Emergency button
- Digital data recorder (SD card)
- Thermal printer
- 40 liter chamber (24/50 liter optional)
| SA-300MB | ||
|---|---|---|
| Chamber Volume | 40 L | 10.6 gal |
| Chamber Size | Ø 300 x 570 mm | Ø 11.8 x 22.4 in |
| Water Reservoir Capacity | 4.2 L * 2 | 1.1 gal * 2 |
| Dimensions (W x H x D) | 620 x 489 x 766 mm | 24.4 x 19.3 x 30.1 in |
| Net Weight | 78 kg | 172 lb |
| Gross Weight | 87 kg | 191.8 lb |
| Voltage / Frequency | 230 V, 50/60 Hz | |
| Power / Current | 3226 W / 14 A | |
| Altitude | Under 3,000 m | |
| Air Removal | Pre-Vacuum | |
| Drying | Post-Vacuum | |
| Recorder | SD/HC (Max. 32GB) | |
| Printer | Real-time Printer | |
ISO 13485:2016 Quality Management System - Medical Devices
93/42/EEC Medical Device Directive
PED 2014/68/EU Pressure Equipment Directive
EN 13060 Small Steam Sterilizers
EN/IEC 61010-1 Safety Requirements for measurement control and laboratory use
EN/IEC 61010-2-040 Safety requirements for sterilizers used to treat medical materials
EN/IEC 61326-1 for EMC Requirements for electrical software
RoHS Restriction of Hazardous Substances Directive 2011/65/EU
Support Plate
A 304 stainless steel support surface.
Dimensions (W x H x D)
227 x 15 x 525 mm
.jpg)
Tray Set (Mesh Tray)
Round tray holder, with a capacity of three stainless steel wire-mesh trays, made of 304 stainless steel.
Trays dimensions (W x H x D) :
209 x 25 x 500 mm
Wire-Mesh Basket
Sterilization basket, made of 304 stainless steel wire.
Container dimensions (W x H x D) :
200 x 160 x 500 mm
Sterilization Box
Sterilization box, there are vents on the sides and bottom that can be opened or closed, made of 304 stainless steel.
Container dimensions (W x H x D) :
230 x 180 x 500 mm
.jpg)
Tray Set (Plate Tray)
Round tray holder, with a capacity of three stainless steel trays, made of 304 stainless steel.
Tray dimensions (W x H x D):
199 x 22 x 500 mm
Spring Holder
Made of 304 stainless steel, which is easy to load and unload the bagged instruments, and carry out proper sterilization and drying.
Dimensions (W x H x D) :
97 x 122 x 148 mm
RO Water Filter
Filter out dirt odor, chlorine and salt; extending life usage of the sterilizer and quality.
Quicker production & supply RO water.
Water Distiller
Water distiller turns water into steam to remove fluoride, arsenic, lead, viruses and other contaminants, protecting your sterilizer and instruments at a fraction of cost.
Air Filter
Filtering effect of air particles under 0.3μm is over 99.99%.
Cham-mate Cleaner
Autoclave chamber & piping cleaner.
(10 bags/ paper box)
Printer Paper
Supplies, used to print sterilization data on printer.
Drain Filter
Filter the impurities in the sterilized waste water to avoid clogging the pipe.
According to the filter condition, it needs to be cleaned or renewed.
High Efficiency Class B Autoclaves
- Pre vacuum + pulse air removal
- Post vacuum drying + 0.3μm HEPA filter
- Double door lock system
- Overheating protection
- Pressure overload protection
- Emergency button
- Digital data recorder (SD card)
- Thermal printer
- 40 liter chamber (24/50 liter optional)
